Rapidly deployable pole mount enclosure

This configuration is to allow the enclosure to be mounted on a pole or post, this bracket also allows mounting to a flat surface where required, whilst allowing all the internal wiring and configuration of the electronics to be done on a work bench, rather than up a ladder or, at height. The pole mount bracket is secured with either hose clips or stainless strapping.

Once the enclosure is closed up, all that is required is to loosen the 4 screws on the side of the pole mounted bracket. Note: these screws cannot be removed only loosened 3 or 4 turns.

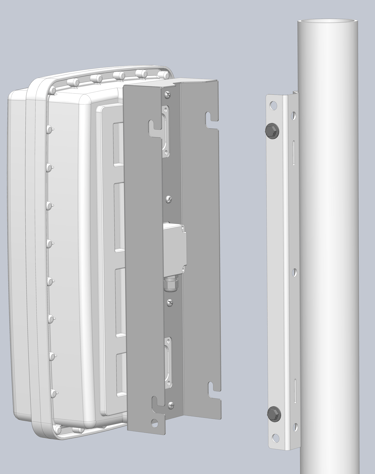

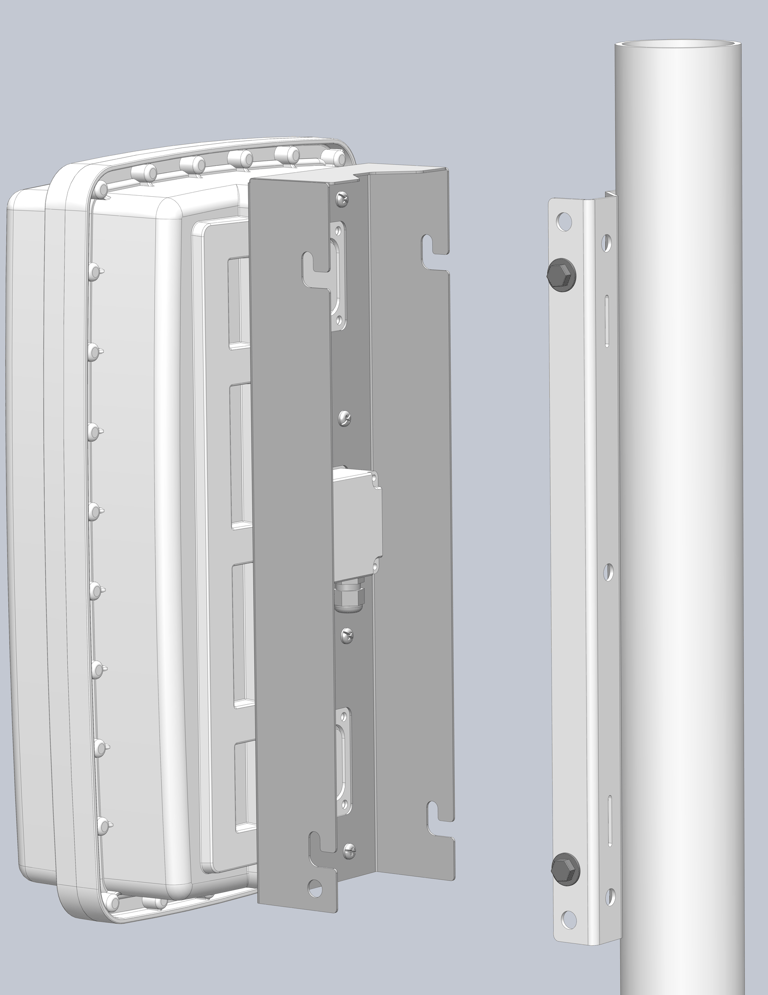

The housing and its bracket are then slotted onto the wall bracket.

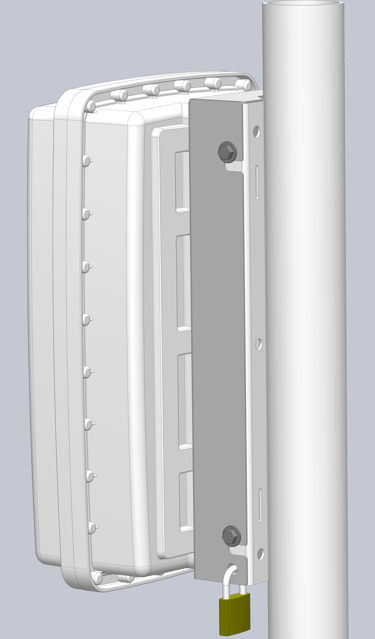

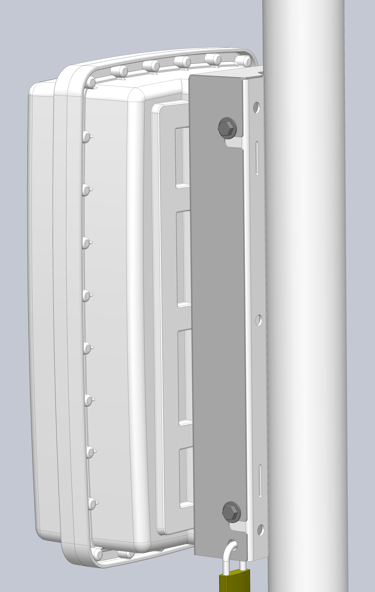

The side screws are then tightened, and a padlock may be placed through the hole as shown.
